Product Name£ºDaytime Running light D30      [Back]

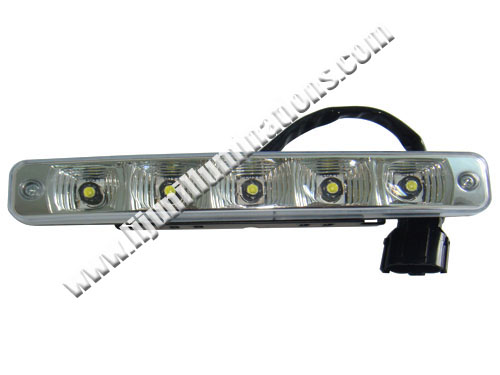

Product Image £º
Product information £º

Product Specification
1. Product name: LED Daytime Running Light
2. Product Model: DRL30
3. Product size: 190mm*30mm*45mm
4. Product consist: one sets includesTwo LED lamps kits (Left one and right one),installed in two car grille below the headlights
5. Lamp consist: lamp hull, light housing£¬viewfinder£¬Electronic circuit board
    and cable



Major Technology Parameters
1. Rated Working voltage: DC 12V and DC 24V
2. Rated Working current: 1.05A and 0.52A (¡À0.05)
3. Rated power: 12.68W (¡À0.1)
4. Maximum surface temperature:¡Ü60¡æ
5. Brightness: 850 lm



LED bulb technology parameters
1. Bulb Color temperature range: 7000K¡À500K
2. Power: 1W£¨each LED bulb£©
3. Rated working current:¡Ü300 mA
4. Current stablilty¡Ü¡À2 mA
5. Brightness is between 80 to 90 LM



Electronic Protection
1. High-Voltage Protection
The control system will stop working automatically to protect the control module from damage when the power voltage is higher than 30V, then LED light only works by the outer power directly;
2. Low-Voltage Protection
The LED light will shut off to protect the system once the voltage is lower than 5v;
3. Lose-Frequency Protection
The LED light shut off once the control frequency is abnormal to protect the control module and LED light.
4. Wrong-Connection Protection
It is no harmful to circuit when the three cables of LED were connected incorrectly. The LED light is off when connection is wrong, it will be on when connection is right. The three cables of LED light are VBB, Vss and VC respectively



Other characters
1. Anti-Vibration
The Anti-vibration character of the LED DRL is accord with the requirements of the automotive relevant technical specifications
2. Waterproof and corrosion-resistance
The waterproof and corrosion-resistance of the LED DRL is accord with the requirements of the automotive relevant technical specifications.
3. Appearance
The appearance of the LED DRL hasn¡¯t obvious depression, rip, deformation. And it has clean and smooth surface without burr, light scratches, dirt, bubble, such as no more than 3 pcs. There are not obvious cumulate glue imprints and white granules inside the light housing and viewfinde
